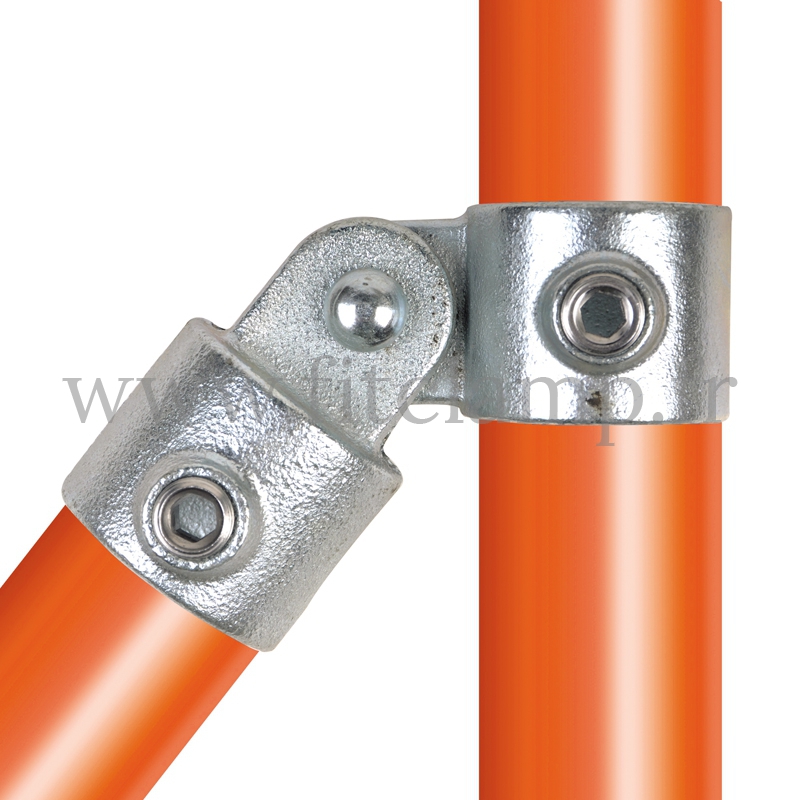

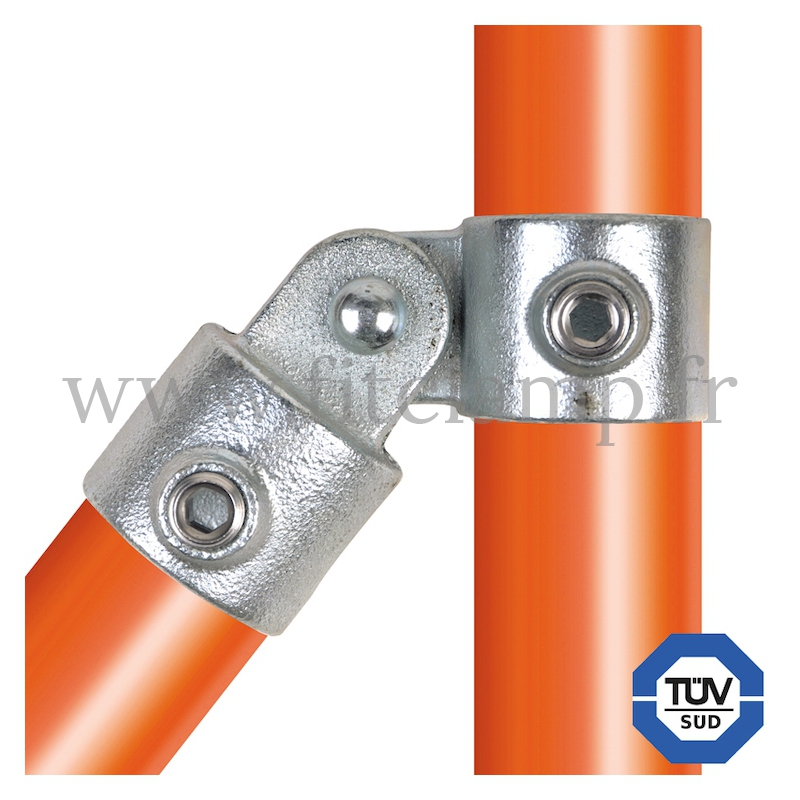

Tube clamp fitting 173: Single swivel for tubular structures. With double galvanised protection
search
  • Tube clamp fitting 173: Single swivel for tubular structures. With double galvanised protection
  • Single swivel
  • Tube clamp fitting 173: Single swivel for tubular structures. Easy to install
  • Tube clamp fitting 173: Single swivel for tubular structures
  • Tube clamp fitting 173: Single swivel for tubular structures. FiClamp
  • Comparative finish tubular fitting : single or double galvanizing. FitClamp

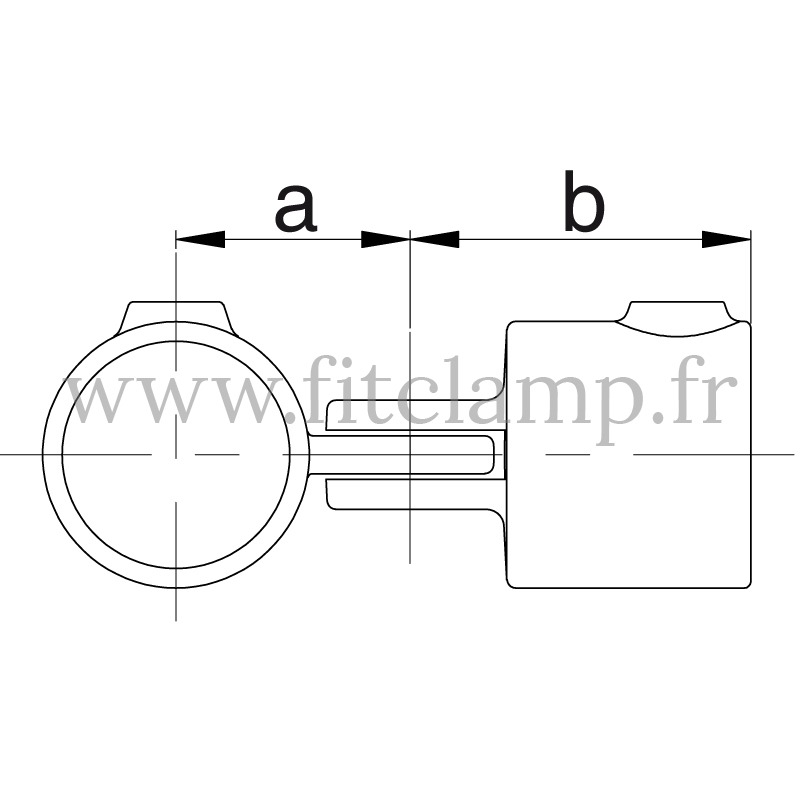

  • Tube clamp fitting. Size of Screw and Allen Key. FitClamp

Single swivel

A-173
€4.69HT
€5.63 tax incl.
More informations
Data sheet
  • Tube diameter : B 34 - Ø 33,7 mm
  • Tube diameter : C 42 - Ø 42,4 mm
  • Tube diameter : D 48 - Ø 48,3 mm
  • Tube diameter : E 60 - Ø 60,3 mm
  • Tube diameter : A 27 - Ø 26,9 mm
  • Suitable for : 2 tubes
  • Connector angles : Orientable
  • finishes : Double galvanisation
Catalogue 2019-2020 FitClamp
  • From 20 product(s)
  • - 5.00 % discount
  • From 50 product(s)
  • - 10.00 % discount
  • From 100 product(s)
  • - 15.00 % discount

Description

Single swivel tube clamp fitting, reference 173, with double galvanised protection for tubular structures. Suitable for joining 2 tubes.

All FitClamp® tube clamp fittings are assembled with a simple Allen key. You don't need to weld or bolt together the different parts! Recommended tightening torque: 40Nm. Put together your tubular structure with ease.

Choose the size of the single swivel clamp, reference 173 according to the diameter of your tubes.
