Double male inline swivel
A-167M
More informations
Data sheet
- Tube diameter : A 27 - Ø 26,9 mm
- Tube diameter : B 34 - Ø 33,7 mm
- Tube diameter : C 42 - Ø 42,4 mm
- Tube diameter : D 48 - Ø 48,3 mm
- Tube diameter : E 60 - Ø 60,3 mm
- Suitable for : 1 tube

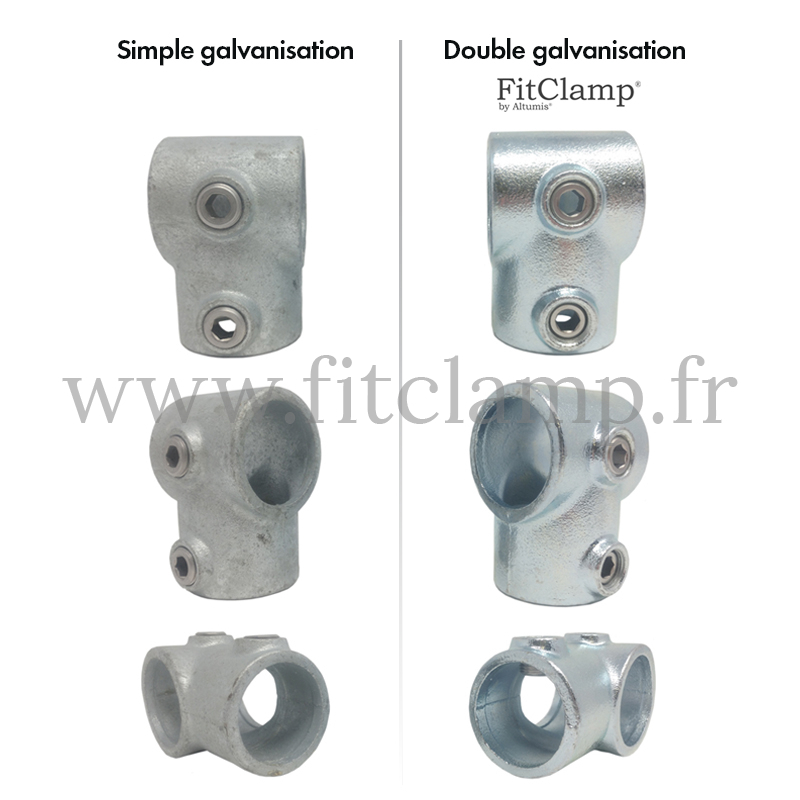

- finishes : Double galvanisation
- From 20 product(s)
- - 5.00 % discount
- From 50 product(s)
- - 10.00 % discount
- From 100 product(s)
- - 15.00 % discount
Description

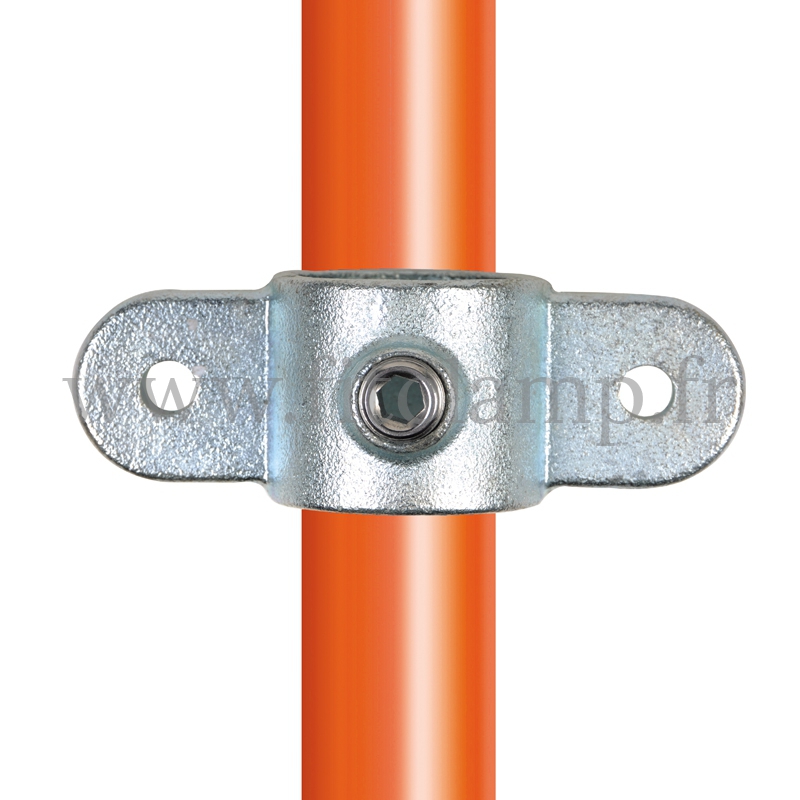

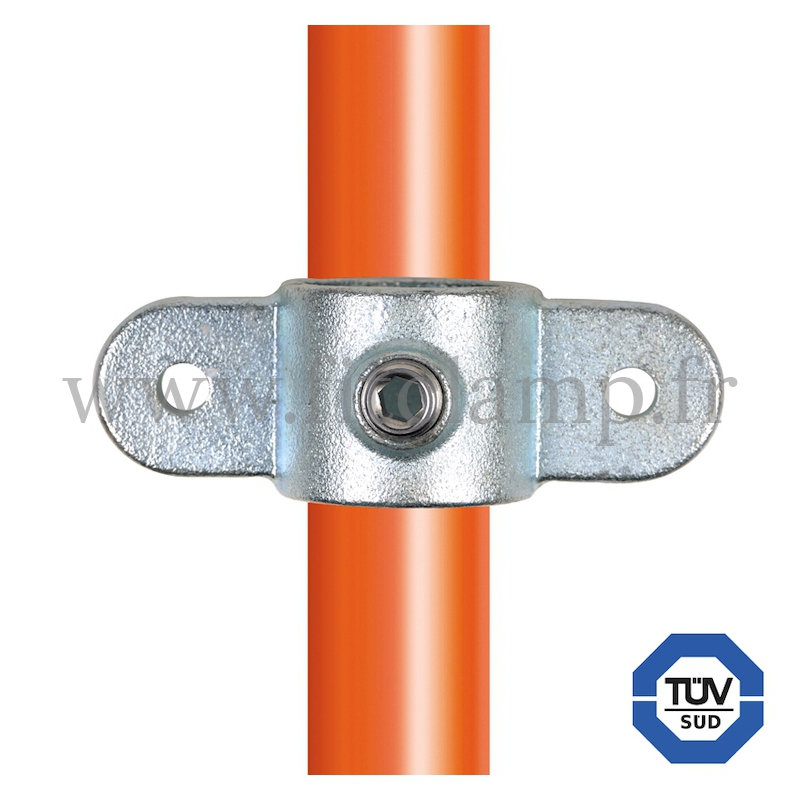

Double male inline swivel tube clamp fitting, reference 167M, with double galvanised protection for tubular structures. Suitable for joining 1 tube.
All FitClamp® tube clamp fitting are assembled with a simple Allen key. You don't need to weld or bolt together the different parts! Recommended tightening torque: 40Nm. Put together your tubular structure with ease.
Choose the size of the double male inline swivel, reference 167M, according to the diameter of your tubes.
