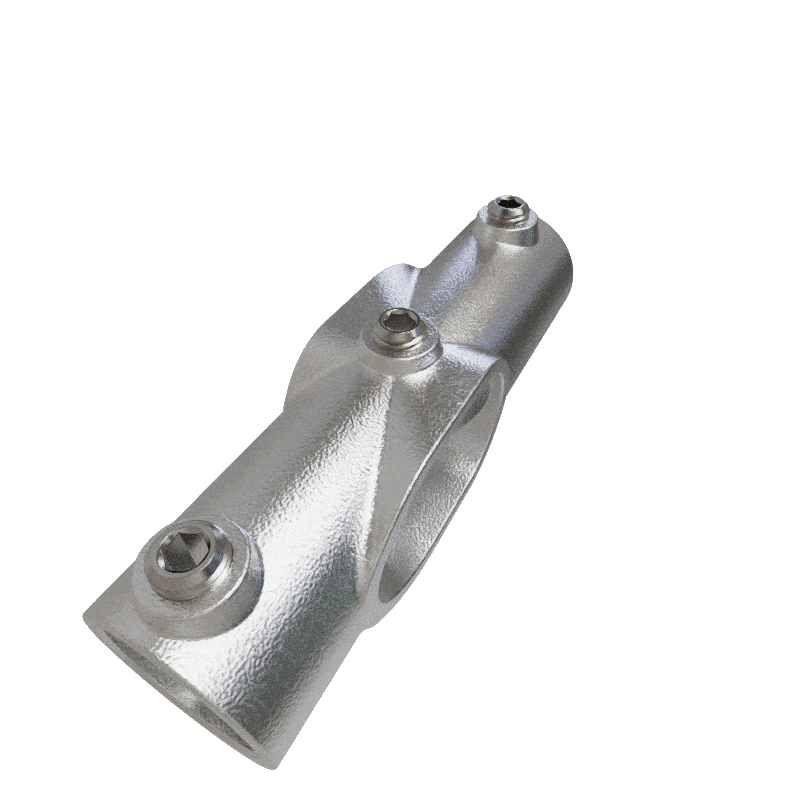

Tube clamp fitting 130 for tubular structures: Angle cross, compatible for use with 3 tubes. Easy to install
search
  • Tube clamp fitting 130 for tubular structures: Angle cross, compatible for use with 3 tubes. Easy to install
  • Adjustable cross - middle rail 30-45°
  • Tube clamp fitting 130 for tubular structures: Angle cross, compatible for use with 3 tubes
  • Tube clamp fitting 130 for tubular structures : Angle cross, compatible for use with 3 tubes
  • Tube clamp fitting 130 for tubular structures: Angle cross, compatible for use with 3 tubes. FitClamp
  • Comparative finish tubular fitting : single or double galvanizing. FitClamp
  • Tube clamp fitting. Size of Screw and Allen Key. FitClamp

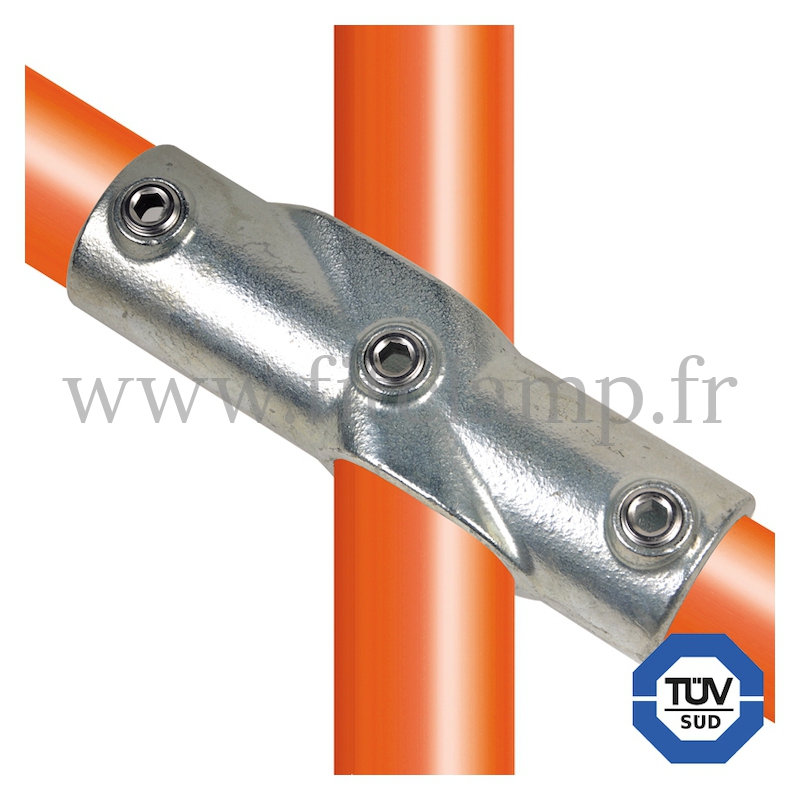

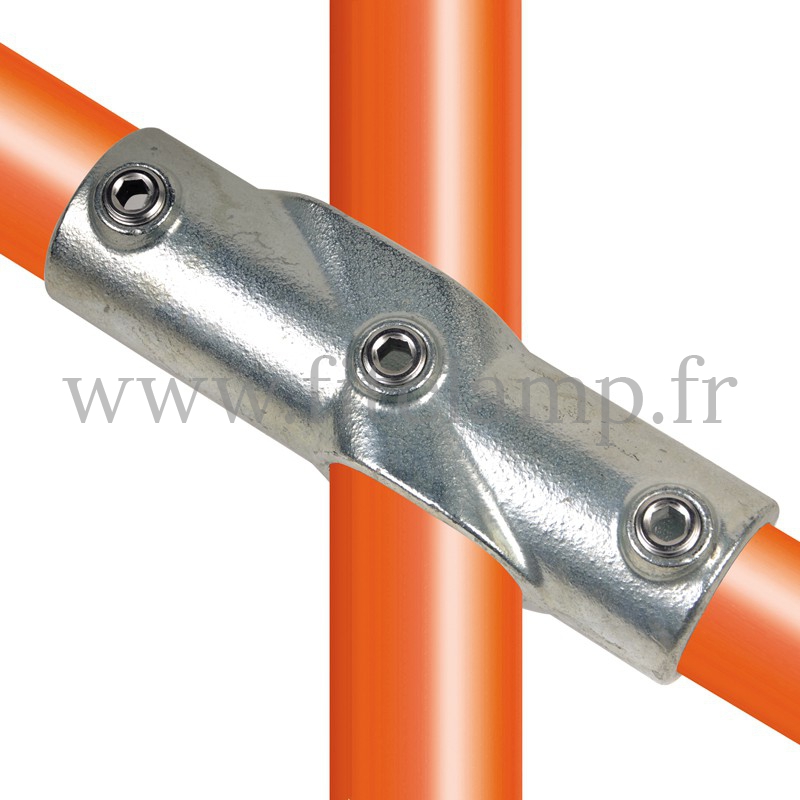

Adjustable cross - middle rail 30-45°

B-130
€6.51HT
€7.81 tax incl.
More informations
Data sheet

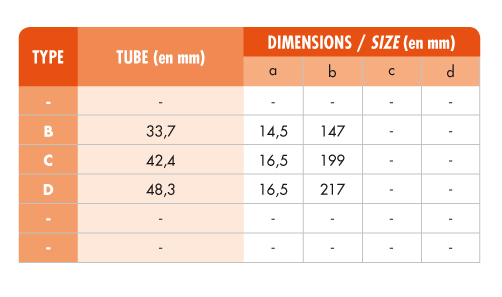

  • Tube diameter : B 34 - Ø 33,7 mm
  • Tube diameter : C 42 - Ø 42,4 mm
  • Tube diameter : D 48 - Ø 48,3 mm
  • Suitable for : 3 tubes
  • Connector angles : Angle 30°-45°
  • finishes : Double galvanisation
Catalogue 2019-2020 FitClamp
  • From 20 product(s)
  • - 5.00 % discount
  • From 50 product(s)
  • - 10.00 % discount
  • From 100 product(s)
  • - 15.00 % discount

Description

Angle cross 30-45° tube clamp fitting, reference 130, with double galvanised protection for tubular structures. Suitable for joining 3 tubes.

All FitClamp® tube clamp fittings are assembled with a simple Allen key. You don't need to weld or bolt together the different parts! Recommended tightening torque: 40Nm. Put together your tubular structure with ease.

Choose the size of the adjustable cross, middle rail 30-45° tube clamp fitting, reference 130, according to the diameter of your tubes.
